A FULLY SUSTAINABLE SOLUTION FOR PROPAGATION
Ellepot Automatic Machines

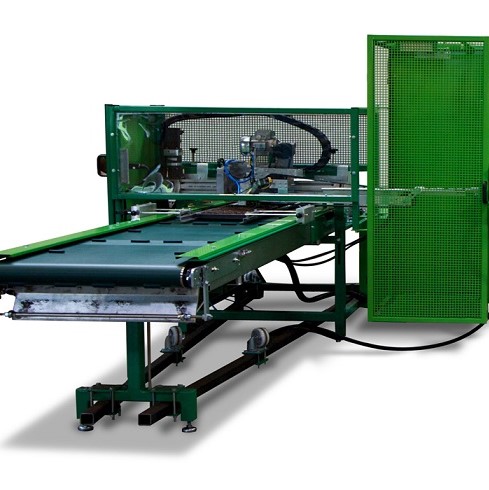

Ellepot Multiflex
When upscaling production, a greater need for automatization often occurs. The Multiflex is the perfect solution for automatic insertion of pots into trays. The system can be customized with various options such as water units, dibble units, drillers or seeder to form a tailor made automatic solution that fits your requirements. The Multiflex can be connected to the models H111, H101 or H211.
Specifications:
- Machine: Ellepot Multiflex
- Pot Diameter: 15-50mm
- Capacity per hour: Up to 7000 pots per hour (depending on pot size and peat)
- Technical: Upgrade H111/211 for Automatic set-up

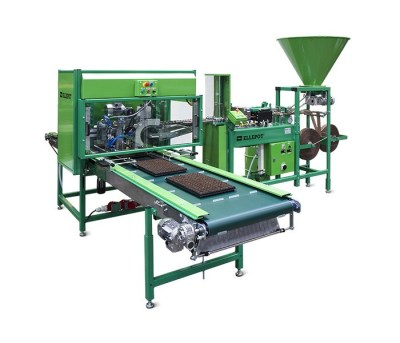

Ellepot Multiflex Turbo
When upscaling production, a greater need for automatization often occurs. The Turbo Multiflex is the perfect solution for automatic insertion of pots into trays. The system can be customized with various options such as water units, dibble units, drillers or seeder to form a tailor made automatic solution that fits your requirements. The Turbo Multiflex is specially made for H112 and H102, as these machines have high speed capacity.
Specifications:
- Machine: Ellepot Multiflex Turbo
- Pot Diameter: 15-50mm
- Capacity per hour: Up to 12000 pots per hour (depending on pot size and peat)
- Technical: Upgrade H112 or H102 for Automatic set-up

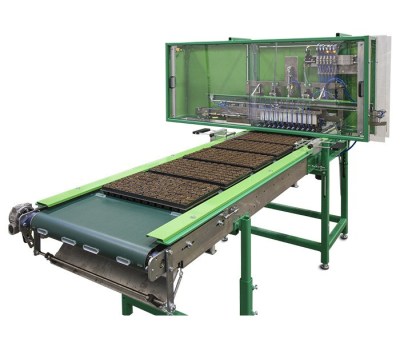

Ellepot TF1
In todays green industry, labour is hard to find, retain and finance. Automation is the key to save time, money & establish efficient and uniform production methods.
The New Ellepot Tray Filler is an individually designed upgrade for your semi-automatic Ellepot Machine and gives you as a grower a significant competitive edge and great cost savings.
The new Tray Filler can be customised with drillers, dibblers, irrigation units and tray handlers for a fully automatic setup with complete process handling and maximum savings on labour.
Specifications:
- Machine: Ellepot Tray Filler TF1
- Pot Diameter: 20-50mm
- Capacity per hour: Up to 9000 pots per hour (depending on pot size and peat)
- Technical: You can add driller, dibbler, irrigation units and tray handlers to create a fully automatic setup

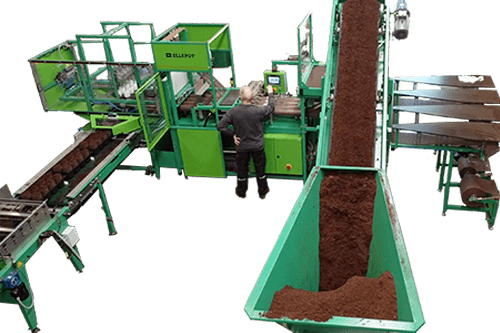

Ellepot TF-Jumbo
Combining the best of both worlds – full flexibility and high capacity.The TF JUMBO can produce Jumbo Ellepots from Ø100-120mm.
Specifications:
- Machine: Ellepot Tray Filler TF Jumbo
- Pot Diameter: 100-120mm
- Pot length up to 300mm
- Capacity per hour: Up to 4000 pots per hour (depending on pot size and peat)
- Technical: You can add driller, irrigation units and tray handlers to create a fully automatic setup
Integrated Lines

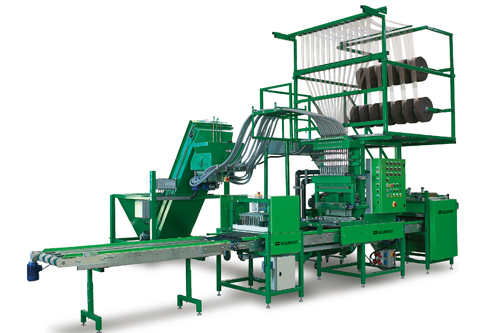

EPM with touchscreen
Our machines are a part of our unique Ellepot Propagation System. The Ellepot machines deliver the highest levels of reliability and flexibility, and offer cost-effective production with little risk of downtime.
Specifications:
- Fully sutomatic machine
- From 8 to 22 pipes
- Touchscreen control system
- Capacity per hour: Up to 40,000 pots per hour (depending on pot size and peat)
- Diameter: From 15 - 80mm

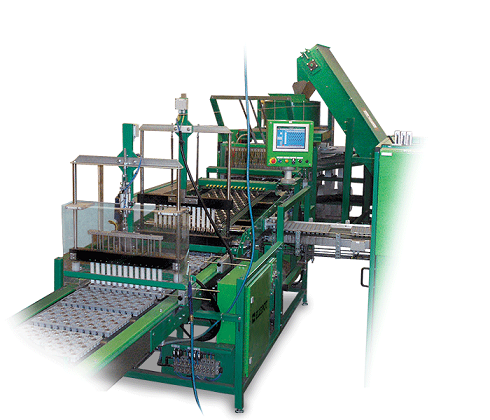

Flexair - New Technology
The new Ellepot machine FlexAIR produce pots with high air content, which gives you a softer pots for easier sticking as well as extremely optimized conditions for strong, natural, and fibrous root growth.
The FlexAIR provides great value with an integrated production line and a range of other top benefits;
⋅ Up to 20 % more AIR in the pots
⋅ Significant savings on soil/substrate
⋅ Super-fast sticking
⋅ Extremely optimized root growth
Specifications:
- Fully sutomatic machine
- From 8 to 22 pipes
- Touchscreen control system
- Capacity per hour: Up to 48,000 pots per hour (depending on pot size and peat)
- Diameter: From 15 - 80mm
- Servo operated knife unit
